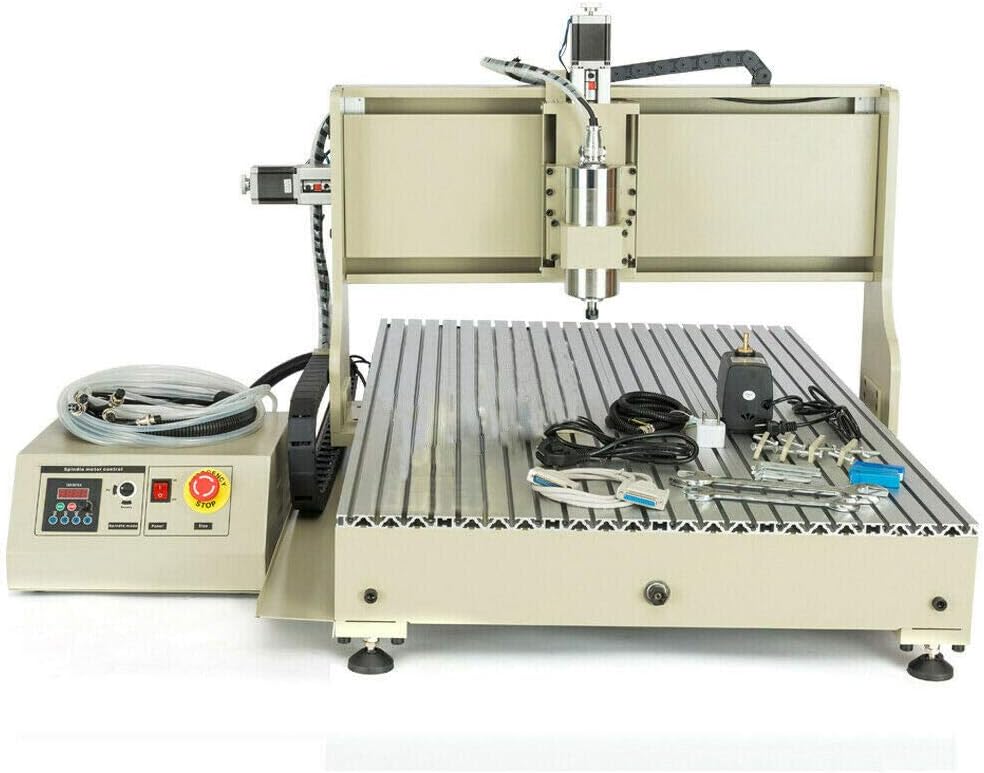

4 Axis USB 1.5KW 6090 Router Engraver Engraving Carving Machine with Water Cooling Spindle for Metal/Wood/PVC etc Working

Description:Router engraving machine parameters:Outside dimension:1150*970*650mm(L*W*H)Working platform size:1045*720mm(L*W)Frame Material：The whole machine used 6061 aluminum profilesMax. Feeding height:≤140mm(From base of Z axis to platform)X,Y,Z Working Area:900(Y)*600(X)*140mm(Z)Sliding unit:X axis:SFU1605 Ball ScrewsY axis:SFU1605 Ball ScrewsZ axis:SFU1204 Ball ScrewsDrive unit:X axis:ø20 High intensity round rail,Y axis: SBRø20 high-strength aluminum base railsZ axis: ø12 high-strength round railStepping motor：57 two-phase 3A (with handwheels)Driving Power for Stepping motor：AC110, 240W, out put:DC24V10AMaximum Idle speed:1500mm/minWorking Speed :50-1500mm / min (different material with different speed settings)Spindle motor:1500W high-speed variable frequency spindle motor , ER11 chuck, with 6mm collet.Specification:Repositioning precision:≤0.05mmCooling:Water-coolingSpeed:0-24000r/mSpindle precision:Radial runout ≤ 0.03mmCarving command:G code / TAB file / nc file / NCC fileVFD:AC110V, 1500W, 0-400Hz (built-in control box)USB Control box parameters:Protection:Emergency stop buttonInput Volts:AC110VTips:1.The spindle motor must connect with the VFD.2. It cannot directly connect with the supply voltage (AC110V/220V).3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.❀Good quality and after-sales service guarantee: If you have any questions, you can contact Uiislon customer service, we will give you a satisfactory answer within 24 hours!Product Description

• 【1.5KW Water-cooled VFD】The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood. Bullet Point
• 【High Quality】Water cooling spindle works more stable and durable. High quality accurate ball Screws drive make the engrving more precision.Anti-blackflash,high precision,long life circle
• 【Connect and Compatible】Communication interface: through USB PORT connect with computer; Support system:Windows XP / win7 with 32bite
• 【Note】Correctly connect the machine with the controller. Don't suspended thecable which connect the Spindle motor with axis(X,Y,Z,A). Otherwise, It will damage the driver of the controller
• 【Application】The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet
