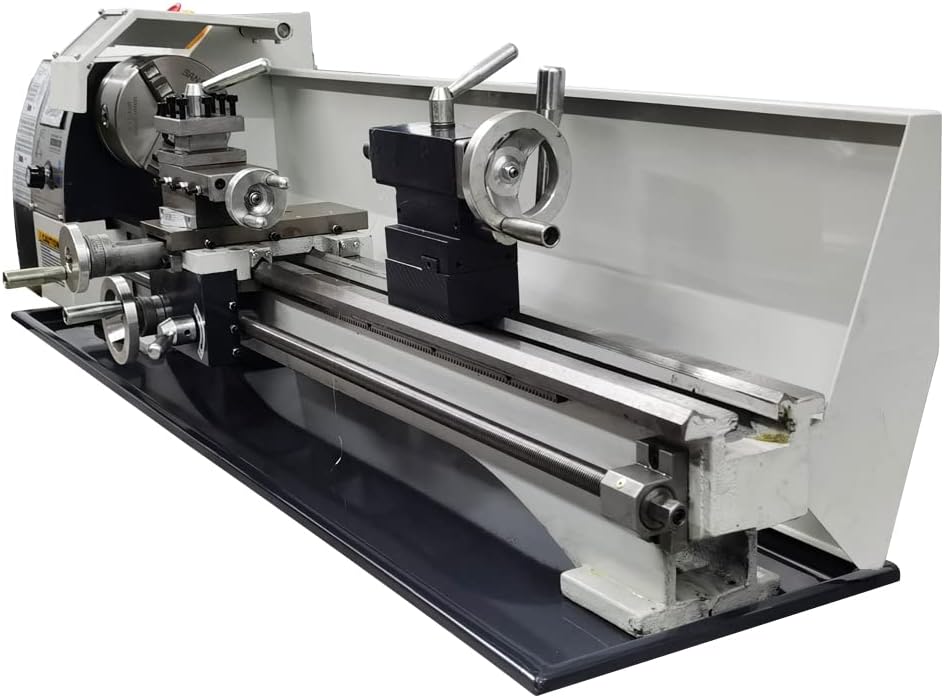

Metal Bench Lathe Benchtop Inch thread Mini Metal Lathe Variable Speed 8"*32" for Woodworking Metalworking 4-Way Tool Post 50-2500rmp Two-Jaw Chuck 110V 1100W

Product parameter: Model: WM210V Voltage: AC110V 50/60Hz(Brushless Motor) Power: 1100W(1.5HP) Length of center: 31.50"(800mm) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: Right side:1.50"(38mm) Left side:1.26"(32mm) Max clamping diameter of right chuck: 4.92"(125mm) Max clamping diameter of left chuck: 3.54"(90mm) Width of lathe bed: 3.94"(100mm) Thread standard: Inch screw thread Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 10-44T.P.I Range of metric threads: 0.3mm-3mm Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.01mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm) Net weight/Gross weight: 172.0LB(78kg)/220.5LB(100kg)

• [Adjustable Speed Control]: This WM210V Metal Bench Lathe is equipped with a 1100W 110V brushless motor, providing infinitely variable speeds from 50 - 2500 RPM. Ideal for both intricate woodworking and diverse metalworking, the speed control allows for precise adjustments, ensuring accurate machining.
• [Efficient Tool Management]: The metal lathe has a horizontal four - station knife rest, enabling rapid tool changes and boosting productivity. The right - side chuck has a maximum clamping diameter of 4.92 inches (125mm), while the left - side chuck has a maximum clamping diameter of 3.54 inches (90mm), firmly securing round and square materials. The MT5 spindle taper and the spindle bore (right side 1.50" (38mm), left side 1.26" (32mm)) can handle a wide variety of workpiece sizes. With a rotary diameter of the tool rest of 5.51" (140mm) and a swing over bed of 8.27" (210mm), it's adaptable for various machining jobs.
• [Precision Engineering]: Equipped with precision dials on the saddle handle, tailstock, and movable center for millimeter - level control. With a spindle accuracy of 0.01mm and an automatic feed range of 0.1 - 0.2mm, it can accurately machine parts. The maximum stroke of the tool rest plate at 2.16" (55mm) contributes to precise machining operations. The concentricity tolerance of 0.03 - 0.05mm further attests to its precision.
• [Safety Design]: Protective covers and emergency stop switches are installed to ensure operator safety during operation. The intuitive layout, including forward and reverse switches and feed levers, simplifies setup. In case of an emergency, these switches can stop the lathe instantly.
• [Compact and Sturdy]: With dimensions of 50.8"*17.3"*13.6" (129*44*34.5cm) and a net weight of 172.0LB (78kg), The metal milling machine's cast iron bed, treated with high - frequency quenching and precision grinding, along with durable components and a robust frame, ensures reliable performance.
