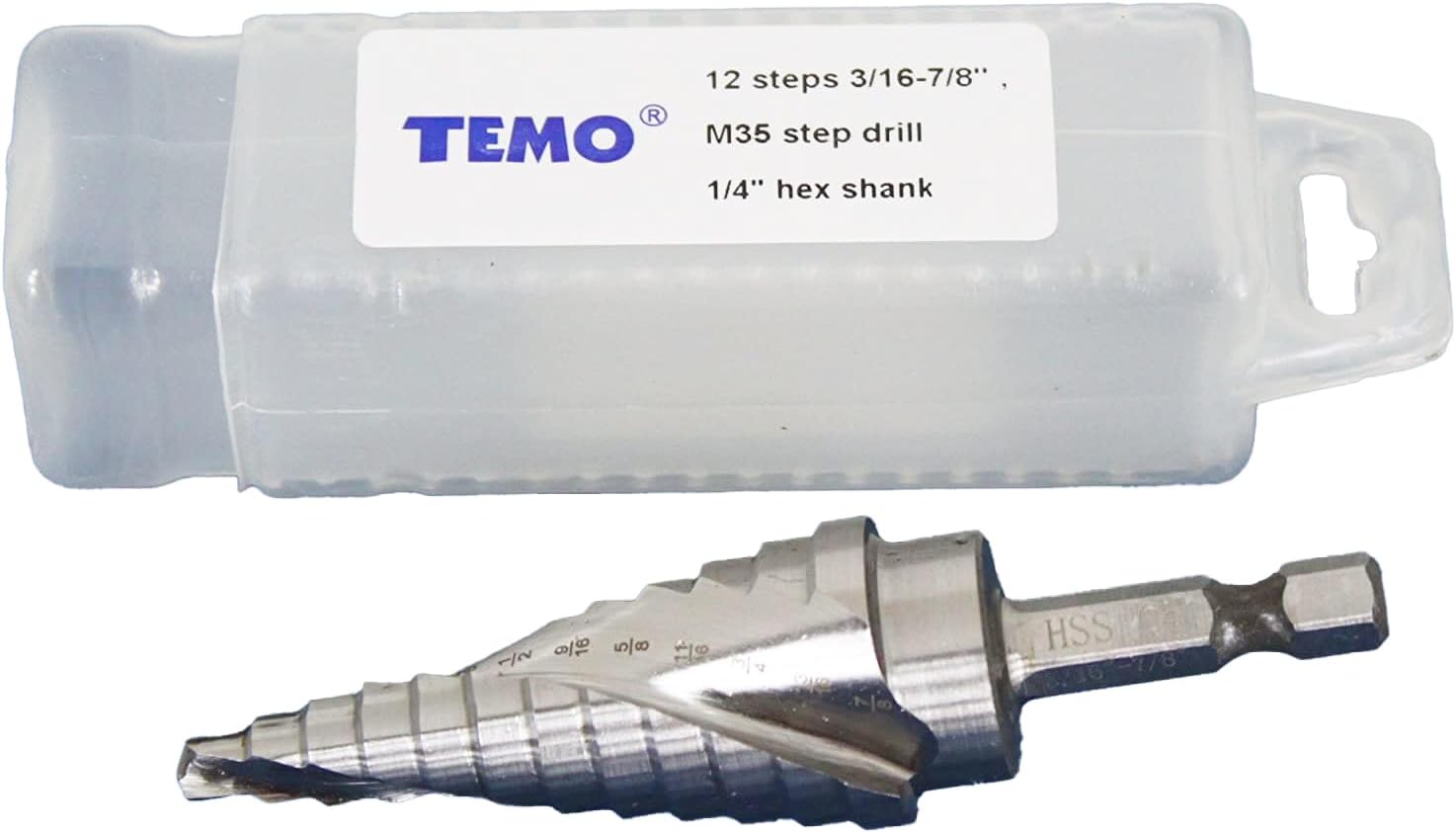

TEMO M35 Cobalt Spiral Flute Step Drill Unibit, 12 Size 3/16 Inch To 7/8 Inch, 1/4 Inch Hex Shank
Product details
| Management number | 223981742 | Release Date | 2026/05/09 | List Price | US$12.00 | Model Number | 223981742 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- M35 cobalt step drill, 1/4" (6.35mm) hex shank, 12 holes: 3/16" (4.76mm) to 7/8" (22.22mm)
- 12 HOLE SIZES: 3/16" (4.76mm), 1/4" (6.35mm), 5/16" (7.94mm), 3/8" (9.52mm), 7/16" (11.11mm), 1/2" (12.7mm), 9/16" (14.29mm), 5/8" (15.88mm), 11/16" (17.46mm) , 3/4" (19.05mm), 13/16" (20.64mm), 7/8" (22.22mm) with 1/16" (1.59mm) increments. The size marks are stamped next to each step for easy identification.
- DOUBLE SPIRAL FLUTES: For more efficient swarf clearance; 1/4 inch hex shank with quick release slot to eliminate slipping; Self-starting for clean holes in thin materials; M35 cobalt HSS to cut stainless steel. The step drill bit is made with M35 cobalt. Ideal for a variety of materials from stainless steel, metal, plastic, fiberglass to wood. They also help to enlarge existing holes. M35 HSSCo is a high speed steel alloy made up of 5% cobalt. M35 is similar to M2, but with 5% cobalt added.
- M35 COBALT: The addition of cobalt increases heat resistance. It is widely used in metal manufacturing because of its ability to resist wear over conventional high speed steels, allowing for shorter cycle times in production environments due to higher cutting speeds or from the increase in time between tool changes. M35 is also less prone to chipping when used for interrupted cuts.
- US-BASED CUSTOMER SERVICE: Available by chat, email, phone, or visit us at our customer service center in La Crosse, WI.
| UPC | 723175193406 |
|---|---|
| ASIN | B00IQJXF5O |
| Model | 3051 |
| Set Name | TEMO M35 Cobalt Spiral Flute Step Drill Set 12pc |
| Brand Name | TEMO |
| Shank Type | Hex |
| Unit Count | 1.0 Count |
| Item Weight | 0.01 Ounces |
| Part Number | 3051 |
| Point Style | Spiral Point |
| Finish Types | Uncoated |
| Manufacturer | Golden Coulee |
| Material Type | Cobalt |
| Item Dimensions | 3 x 1 x 1 inches |
| Tool Flute Type | Spiral |
| Cutting Diameter | 19.05 millimeters Millimeters |
| Number of Flutes | 2 |
| Number of Pieces | 12 |
| Cutting Angle String | 135 Degrees |
| Minimum Bore Diameter | 0.19 Inches |
| Surface Recommendation | Metal, Plastic |
