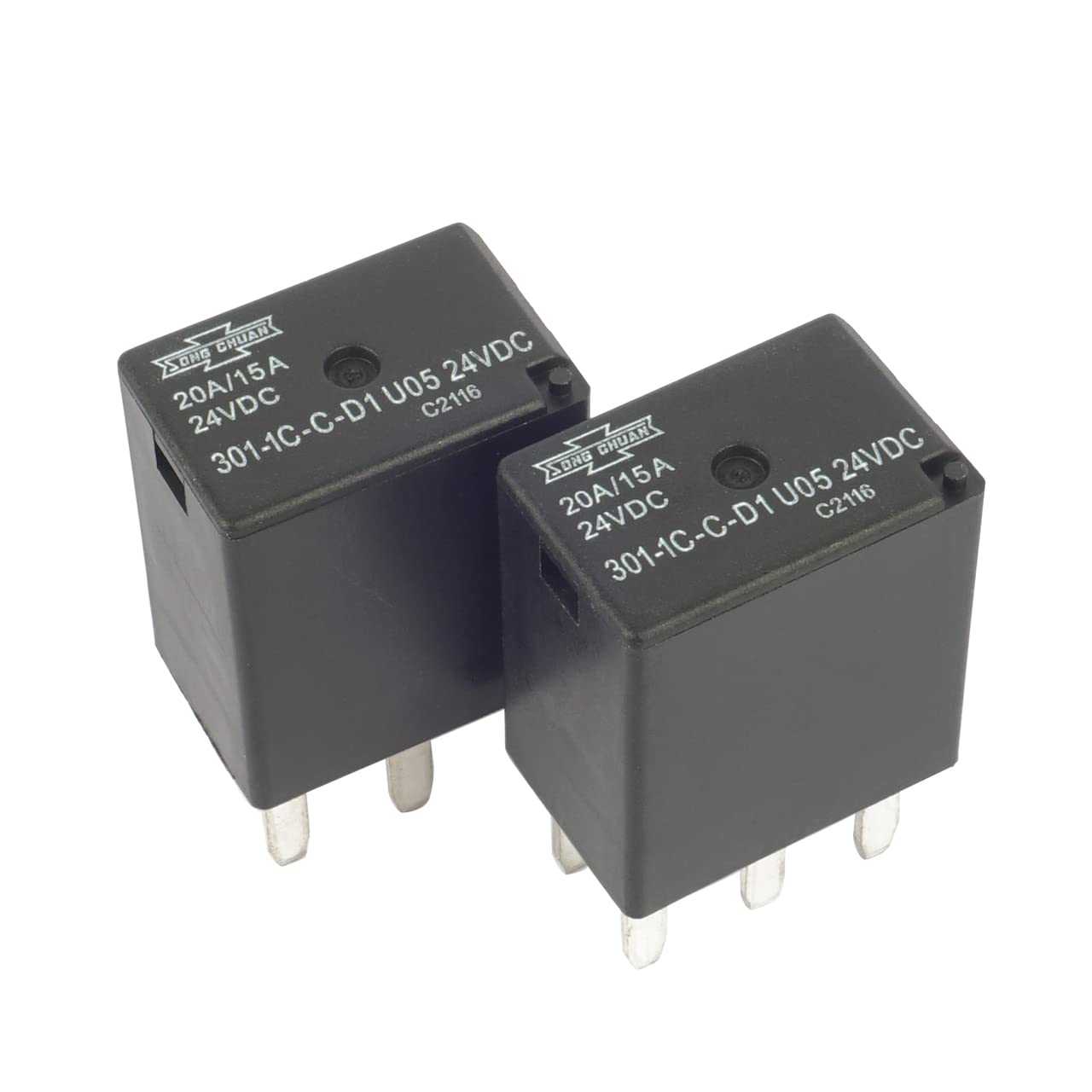

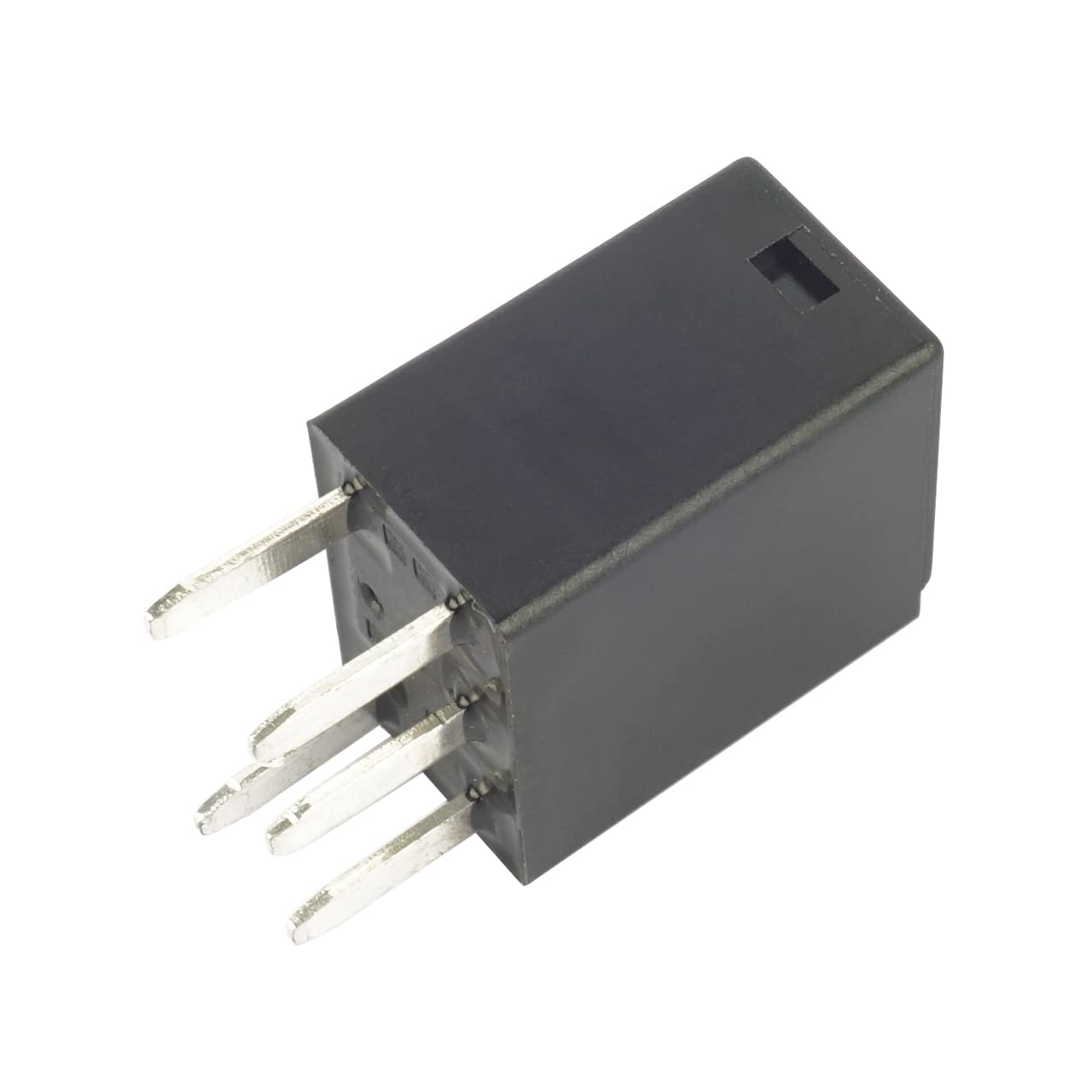

(Pack of 2) 301-1C-C-D1 U05 12VDC 35A Automotive Power Relay 5 Pins with Flux Tight
Product details
| Management number | 233907820 | Release Date | 2026/06/27 | List Price | US$5.44 | Model Number | 233907820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Nominal Coil Voltage: 24VDCContact Form: 1 Form CContact material: AgSnO alloyOperate time(1) : 10ms Max. Release time (1): 10ms Max. Insulation resistance（1）: 20 MΩ Min. (DC 500V)Contact Rating:35AOperating ambient temperature:-40~+125°C (no freezing)Weight: Approx.20 g Package Content: 1 x (Pack of 2) 301-1C-C-D1 U05 24VDCAttention:Do not switch the contacts without any load as the contact resistance may become increased rapidly.To assure optimum performance, avoid the relay from dropping, hitting, or other unnecessary shocks.
- Micro 280 automotive relay.
- SPDT contact configurations.
- NC contacts switch 20A resistive load, 100,000 ops., 23°C.
- Operating ambient temperature -40°C to 125°C.
- Available with quick connect terminals.
| UPC | 602668587246 |
|---|---|
| ASIN | B0B3TDMSXR |
| Model | 602668587246 |
| Wattage | 840 watts |
| Brand Name | Song Chuan |
| Part Number | 602668587246 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Closed |
| Manufacturer | SONG CHUAN |
| Mounting Type | DIN Rail Mount |
| Connector Type | Quick Connect |
| Current Rating | 35 Amps |
| Operating Time | 0.01 Seconds |
| Operation Mode | Automatic |
| Contact Material | Agsno Alloy |
| Specification Met | IEC/EN 60947 |
| Contact Current Rating | 35 Amps |
| Upper Temperature Rating | 125 Degrees Celsius |
| Maximum Switching Current | 20 Amps |
| Minimum Switching Voltage | 24 Volts (DC) |
