Drawings & Technical Information



Installation Drawings  [top]

Lab Capabilities for Particle Analysis  [top]

milling-drawings-particle

The Jet Pulverizer Company has numerous methods of particle sizing, the latest addition being a Horiba LA-950 laser sizing unit. We also offer testing with Coulter LS230 and Coulter Multisizers. Other methods include sieve testing, Fisher sub sieve sizer, optical microscope inspection, Scotts Biometric density meter and Tap density.

Key specs are:

  • Horiba LA-950 – Laser diffraction particle size analyzer with wet and dry modules. (0.01µ to 3,000µ)
  • Coulter LS 230 – wet module with particle size range of 0.04µ to 2,000µ.
  • Coulter Multisizer – Currently running 3 stands with 50 and 140 µ apertures (1µ to 80µ).
  • Sieve Testing – Wet and dry screens from 6 to 500 mesh.
  • Fisher Sub Sieve Sizer – 1µ to 25µ
  • Bausch and Lomb Optical Microscope – 1X, 2.5X, 10X & 25X lenses (1µ to 1000µ).
  • Scotts Biometric Density Meter – Cubic inch.
  • Tap Density – Manual 100 ml graduated cylinder.

Reference Information  [top]

Table of Standard Sieves
Microns Inches U.S. Standard ASTME 11-61 British Standard BSS: 410-1989 Tyler
3360 0.1320 6 5 6
2830 0.1110 7 6 7
2380 0.0937 8 7 8
2000 0.0787 10 8 9
1680 0.0661 12 10 12
1410 0.5550 14 12 12
1190 0.4690 16 14 14
1000 0.0394 18 16 16
840 0.0331 20 18 20
707 0.2800 25 22 24
595 0.0232 30 25 28
500 0.0197 35 30 32
420 0.0165 40 36 35
354 0.0138 45 44 42
297 0.0117 50 52 48
250 0.0098 60 60 60
210 0.0083 70 72 65
177 0.0070 80 85 80
149 0.0059 100 100 100
125 0.0049 120 120 115
105 0.0041 140 150 150
88 0.0035 170 170 170
74 0.0029 200 200 200
63 0.0025 230 240 250
53 0.0021 270 300 270
44 0.0017 325 350 325
37 0.0015 400 400 400
32 0.0013 450 440 450
25 0.0010 500 500
20 0.0008 635 635
13 0.0005 1000 1000
10 0.0004 1250
5 0.0002 5000
1 0.00004 1 10000
Table of Relative Sizes
Material Approx. Size Limit Size in Angstroms
Proton 2 x 10-9 2 x-7
Electron 38 x19-7 nm 3.8 x 10-6
Cosmic Ray 5 x 10-5 nm 0.0005
Shortest X-Rays 0.006 nm 0.06
Diameter of Hydrogen Atom 10.8 nn 1.08
Longest X-Rays 8 nm 80
Colloidal Particles 2 – 100 nm 20 – 1,000
Lower Limit of Microscopy 100 nm 1,000
Wave-Length of Violet Light 400 nm 4,000
Wave-Length of Red Light 650 nm 6,500
Bacteria (cocci) 2 µ 20,000
Red Blood Cells 8 µ 80,000
White Blood Cells 25 µ 250,000
Lower Limit of Vision (naked eye) 40 µ 400,000
325 Mesh Opening 44 µ 440,000
Diameter of Human Hair 50 µ 500,000
100 Mesh Opening 149 µ 1,490,000
Table of Equivalent Sizes
Unit Meters Inches Millimeters Microns Nanometers Angstroms Picometers
Meter 1 39.37 103 106 109 1010 1012
Inch 0.0254 1 25.4 25,500 2.54 x 107 2.54 x 108 2.54 x 1010
Millimeters 10-3 0.394 1 1000 10-6 10-7 10-10
Microns 10-6 3.94×10-5 10-3 1 1000 10,000 10-6
Nanometers 10-9 3.94×10-8 10-6 10-3 1 10 10,000
Angstrom Units 10-10 3.94×10-9 10-7 10-4 0.1 1 100
Picometers 10-12 3.94×10-11 10-9 10-6 10-3 0.01 1

Compressors  [top]

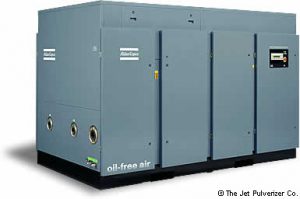

milling-compressors

Jet mills are powered by a pressurized gas such as compressed air, nitrogen, or superheated steam. Compressed air is by far the most common input energy source for jet mills with input demand ranging from 7 scfm (1″ mill) to 2900 scfm (42″ mill), delivered at 100 psi.

Nitrogen is used when processing materials must be maintained in an inert atmosphere to protect from oxidation and for those that are hygroscopic. The effect is to keep the powder very dry, preventing caking adherence on interior contact surfaces. Nitrogen is also used to lower the temperature at the material into its glass transition zone. Soaking and feeding powders at extremely cold temperatures in this way has an embrittling effect on the particles, enhancing fracturing.

Superheated steam from a boiler provides the highest level of energy input and is often used in production lines that run 24×7 continuous operation. Steam can be used to process the most difficult to grind or convey materials or can be used to deagglomerate chemically engineered products. Lightweight and high-velocity steam power can be the most efficient form of input energy. Superheated steam also ensures a very dry medium for accelerating particles in a jet mill at very high energy levels.

In rare instances Argon gas has been used on pyrophoric materials to prevent spontaneous ignition.

In most applications, compressed air is used and a stand-alone air compressor sized properly for the application generally provides this air supply. A standard rule-of-thumb for estimating compressor hp rating is that one hp will produce about 4 scfm of air [4 scfm / hp]. For example, an 8″ jet mill requiring 100 scfm of air would require a 25 hp air compressor.

Air compressors should supply air that is dry and free of oil. Most compressor manufacturers can specify either a refrigerated or a desiccant type dryer that matches customer application flow rate, pressure, and moisture requirements. Generally, air supply should be delivered with a dew point of less than 35 F with less than 1 or 2 PPM of oil. Oil- injected screw compressors require in-line oil filters to achieve this specification. Oil free compressors are available at higher cost but may be required for certain sanitary processes.

Oil-free compressors are generally high-efficiency multistage units and may be used to supply air at high temperatures by retaining the heat of compression.

Jet pulverizer applications engineers make it a point to ensure that the customer understands the requirement for an adequate and properly conditioned air supply. Generally, customers either have sufficient installed compressed air capacity available at their facility or they make plans to increase plant capacity to accommodate the demand of their new jet mill. Upon request, however, Jet Pulverizer Co. will include a suitable air compressor in the jet mill system package quotation. Compressors recommended by Jet Pulverizer Co. are selected from those offered by various manufacturers on the basis of service and resource factors, and the individual features they offer.

Feeders & Collectors  [top]



milling-feedersA reliable, controllable feeder of suitable design and capacity is necessary for proper operation of a jet mill. All jet mill system packages, then, are sold with an appropriate feeder, one that is able to handle the material efficiently and introduce it into the mill at rates required by the application. The feeders recommended by Jet Pulverizer Co. vary depending on materials and the requirements of the specific application. Customer requirements in this regard can vary widely, including provisions for wash-down, explosion-proof service, allowable metal contact, batch quantity, feed rates, bulk density, raw particle size, moisture content, flowability, sanitary service constraints and motor control.

There are three categories of feeder types from which to choose:

Volumetric feeders: feed raw material from a hopper through a helical metering auger. This is the most common method of feeding a jet mill by far. Volumetric feeders are specified with a range of hopper capacities and a range of metering auger sizes. Hoppers usually are designed with some form of agitation to prevent bridging thus assuring steady flow to the auger. Jet mills have performed very well with this type of feeder over a wide variety of raw materials.

Loss-weight feeders: a variant of the volumetric feeder, feature a built-in scale (or other method to measure weight) with a feedback circuit that adjusts metering auger speed (or vibratory level) to match a preset dosage rate on the controller. As the end of a batch nears, auger speed (or vibration) may increase to offset the reduced volume entering the metering auger (or feed trough). These feeders also assure a constant delivery rate of raw material supply without regard to possible varying bulk densities. Powder density may vary between the top to the bottom of a hopper. Loss-weight feeders are easy to adjust to a new powder drop setting. Feed rates are easily converted into common units of measure (ie. pounds per hour, or grams per minute). Finally, process records may be better gathered and stored with computer processor aid.

Vibratory feeders: are the simplest design. They convey raw material along an open vibrating v trough. These feeders draw material from either a simple powder funnel or a stainless steel hopper. Merits of this method include 100% material utilization, inherent suitability for extremely small sample sizes, reduced friction that may cause reaction in temperature sensitive materials, and allows for easy viewing of the feed stock.

Product Collectors Present Many Options

Product collectors: are engineered to meet demanding dust collection requirements and are integrated into many jet mill packages. Collectors can be simple free hanging “socks” or complex housings with reverse pulse cleaned bag or cartridge filters. These collectors can be designed to strip 99.999% of the ultra fine particulate from the gas stream leaving the MicronMaster® and deposit the product into a container, packager or the next process. Properly designed collector housings provide the following advantages:

  • Minimizes the dust explosion risk when processing combustible powders.
  • Provides sanitary conditions
  • Air pollution control
  • Minimizes airborne nuisance dust and asphyxiation risk by venting exhaust gas outside the work environment
  • Accumulator for downstream processes
  • Increases ease of product recovery and packaging
  • Jet Pulverizer engineers will specify dust collector features to provide a safe, effective, and efficient system for your material handling requirements.
